About HUP-ML Editor

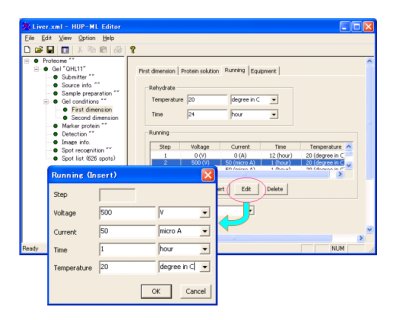

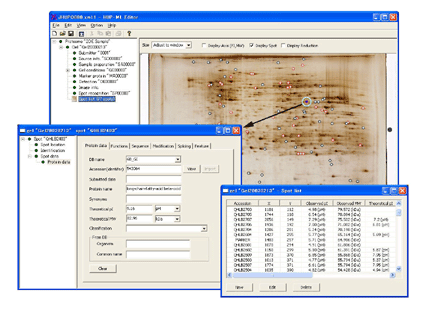

    A HUP-ML Editor is the software that you can create and edit HUP-ML formatted proteome data without XML skills.   As easy as using other software like e-mail software, HUP-ML Editor can manage HUP-ML with no hassle.   As shown in figure below, HUP-ML Editor is composed of two parts of graphical interfaces.   The proteome experimental steps are on the left side of the editor; otherwise, the information and the results are shown and stored on the right side.   By using a tree view of HUP-ML editor on the left, you may easily input experimental protocol information step by step.   This editor can show printable 2D-E gel image retaining each recognized spot position.   By clicking a spot on the gel image, a new popup window is opened to show and restore the identified proteinsf information.
HUP-ML Editor Version 0.80 features:
  • Graphical user interface to create and edit HUP-ML formatted data.
  • Template functions to avoid re-entry of the same information.
  • Clickable 2D-E gel image viewer and print function.
  • One step viewer of public data base through the accession number acquired by protein identification.
  • Protein data importing function to merge related data from public data base.
  • MS raw data importing and charting function.
  • Automated data exchange function from older version of HUP-ML to current one.
  • See the user manual in detail.
Please check the download site to download HUP-ML editor.
Questions, feedbacks and bug reports
    If you have any questions, feedbacks and bug reports about HUP-ML editor, feel free to let us know. Please send e-mail to
How to Install
  1. Download the HUP-ML installer.
  2. Execute setup.exe to start installation, and follow the instructions by the installer until it is completed.
If an error message like &ldquo Fail to initialize DOM &rdquo appears, please visit Microsoft download site to install MSXML, and then follow the instructions.
System requirements
  • XML parser software: Microsoft MSXML® 3.0 or later
  • OS: Microsoft Windows® 98 or later
  • CPU: Intel® PentiumTM III or later
  • RAM: more than 128MB recommended

Intel and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Microsoft, MSXML, and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

    The Software may not be copied, modified, decompiled, disassembled, rent, sold and redistributed.   Please read "LICENSE.TXT" in the directory where the software is installed.
